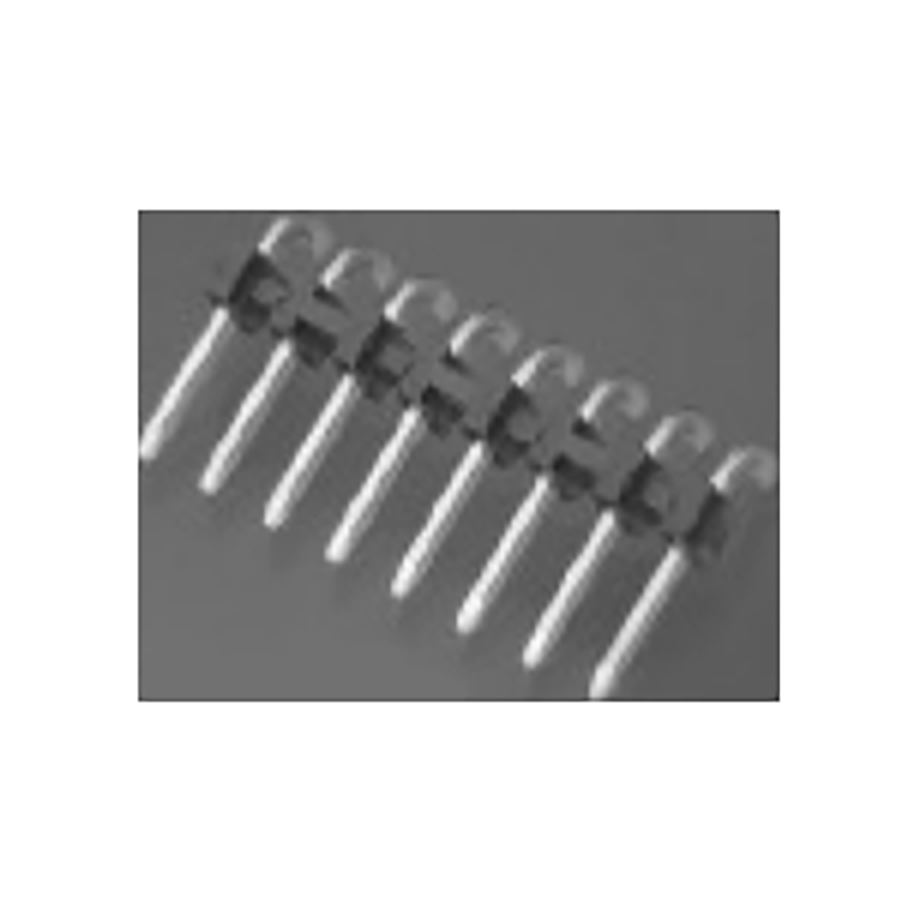

87655-3
Manufacturer:
TE Connectivity
Mfr.Part #:
87655-3
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:3 Pitch:3.9624 mm
| Parameter | Value |
|---|---|
| Length | 10.74 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 15.26 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Lead, Tin |
| Lead Length | 6.985 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.9624 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| ELV | Non-Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 12 MΩ |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| Contact Mating Length | 8.763 mm |
| Keyed | Yes |
| Contact Gender | Male |
| Mating Post Length | 8.76 mm |
| Termination Post Length | 3.81 mm |
